Ten bout tramlining rhythm

Supplies information about a ten-bout tramline rhythm with specific drill and sprayer combinations and seed spout closures. These include adjustments for field edge orientation and spout closures.
Use this rhythm with 4 m drill/10 m sprayer, 6 m drill/15 m sprayer, 8 m drill/20 m sprayer combinations (2x2 left side seed spouts are closed on bouts 4 and 7, and 2x2 right side seed spouts closed on bouts 2 and 9).
Note:
The rhythm starts on bout 1 when the field edge is on the left. If you start with the edge on the right, you must move the increment of the current bout up to 6 before you start the drill.

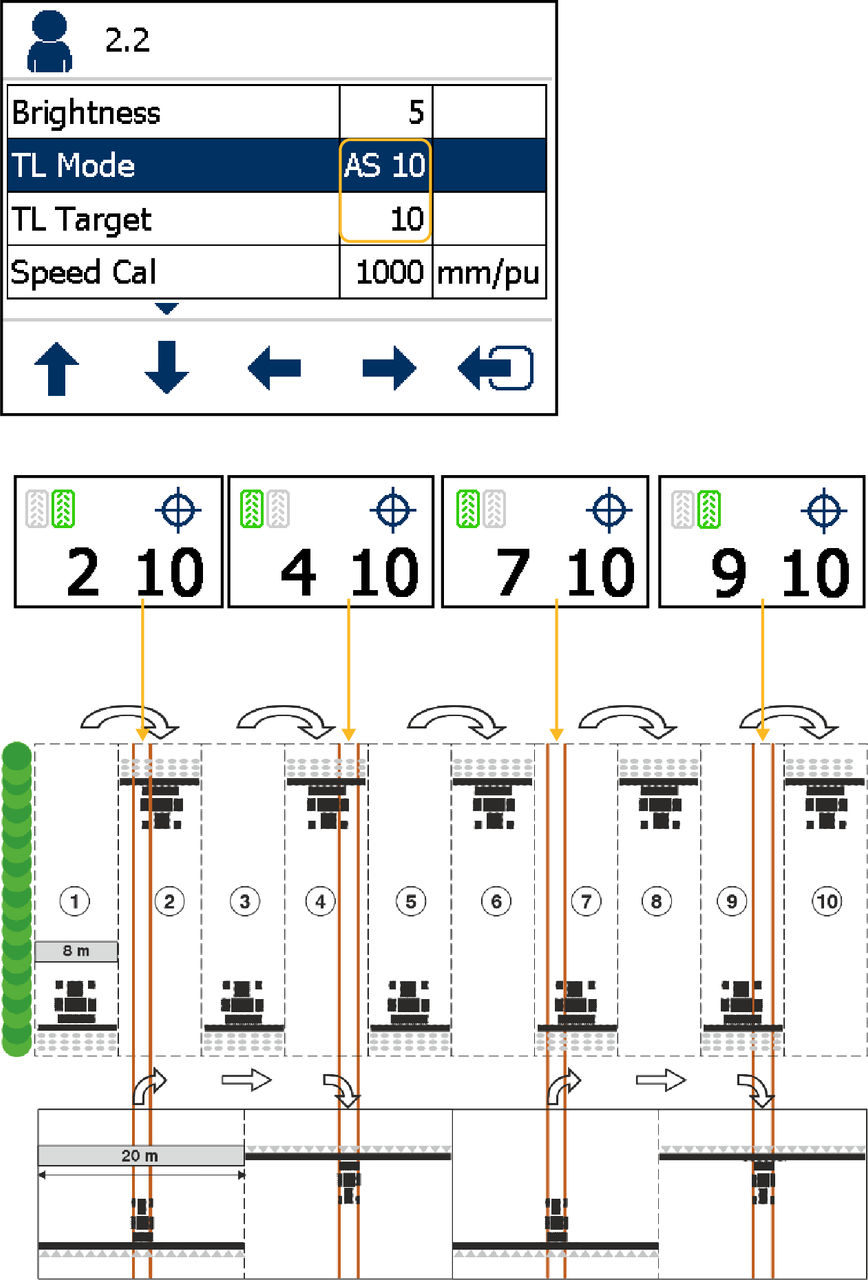

Figure: Ten bout tramlining rhythm
