Fourteen bout tramlining rhythm

Supplies information about a fourteen-bout tramlining rhythm with specific seed spout closures. This includes adjustments for field edge orientation.
Use this rhythm with 6 m drill/21 m sprayer combination (2x2 left side seed spouts closed on bouts 2 and 13, and 2x2 right side seed spouts closed on bouts 6 and 9).
Note:
The rhythm starts on bout 1 when the field edge is on the left. If you start with the edge on the right, you must move the increment of the current bout up to 8 before you start the drill.

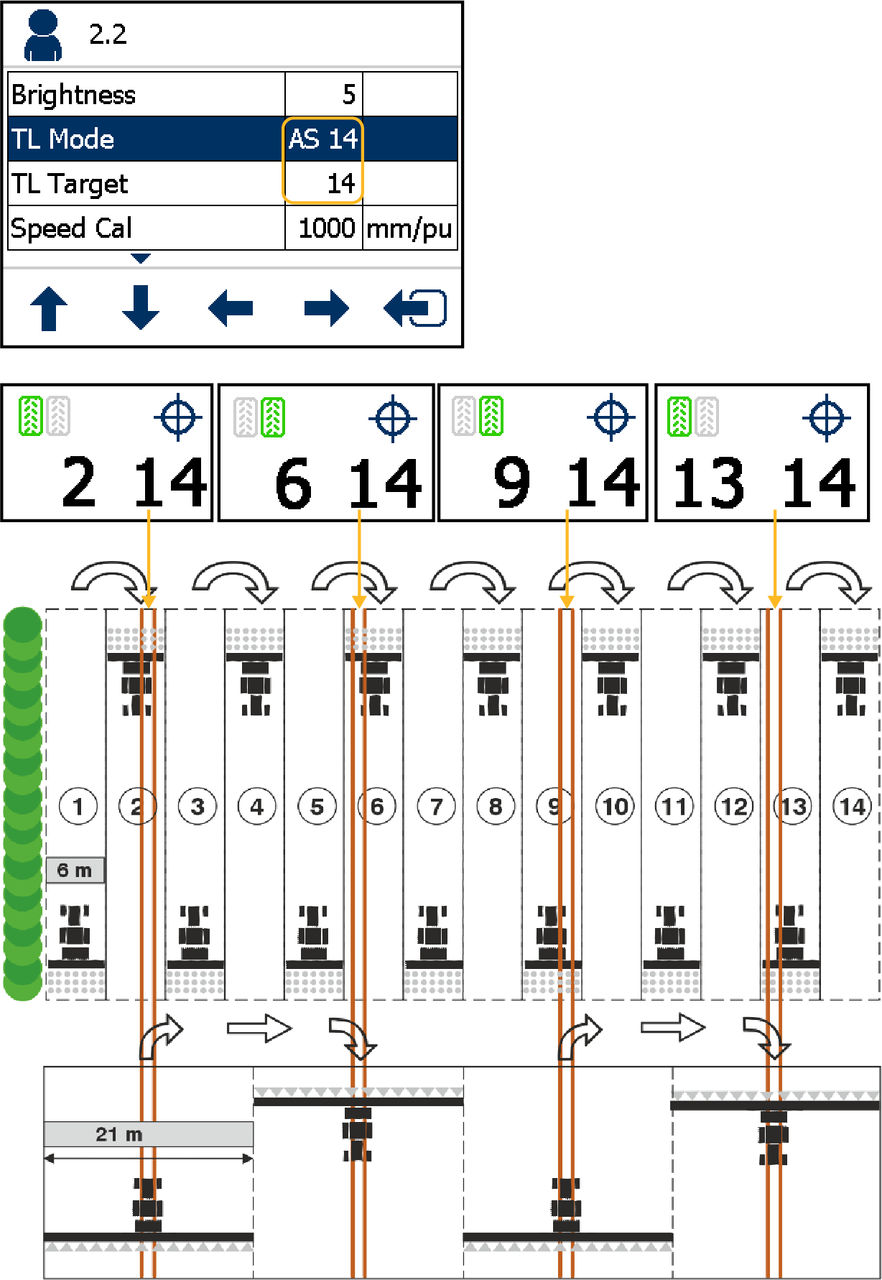

Figure: Fourteen bout tramlining rhythm
