Eighteen bout tramlining rhythm

Supplies information about an 18-bout tramlining rhythm for specific drill/sprayer combinations and seed spout closures. This includes and adjustments for field edge orientation.
Use this rhythm with 4 m drill/18 m 6 m/27 drill/sprayer combinations (2x2 left side seed spouts are closed on bouts 3 and 16, and 2x2 right side seed spouts closed on bouts 7 and 12).
Note:
The rhythm starts on bout 1 when the field edge is on the left. If you start with the edge on the right, you must move the increment of the current bout up to 10 before you start the drill.

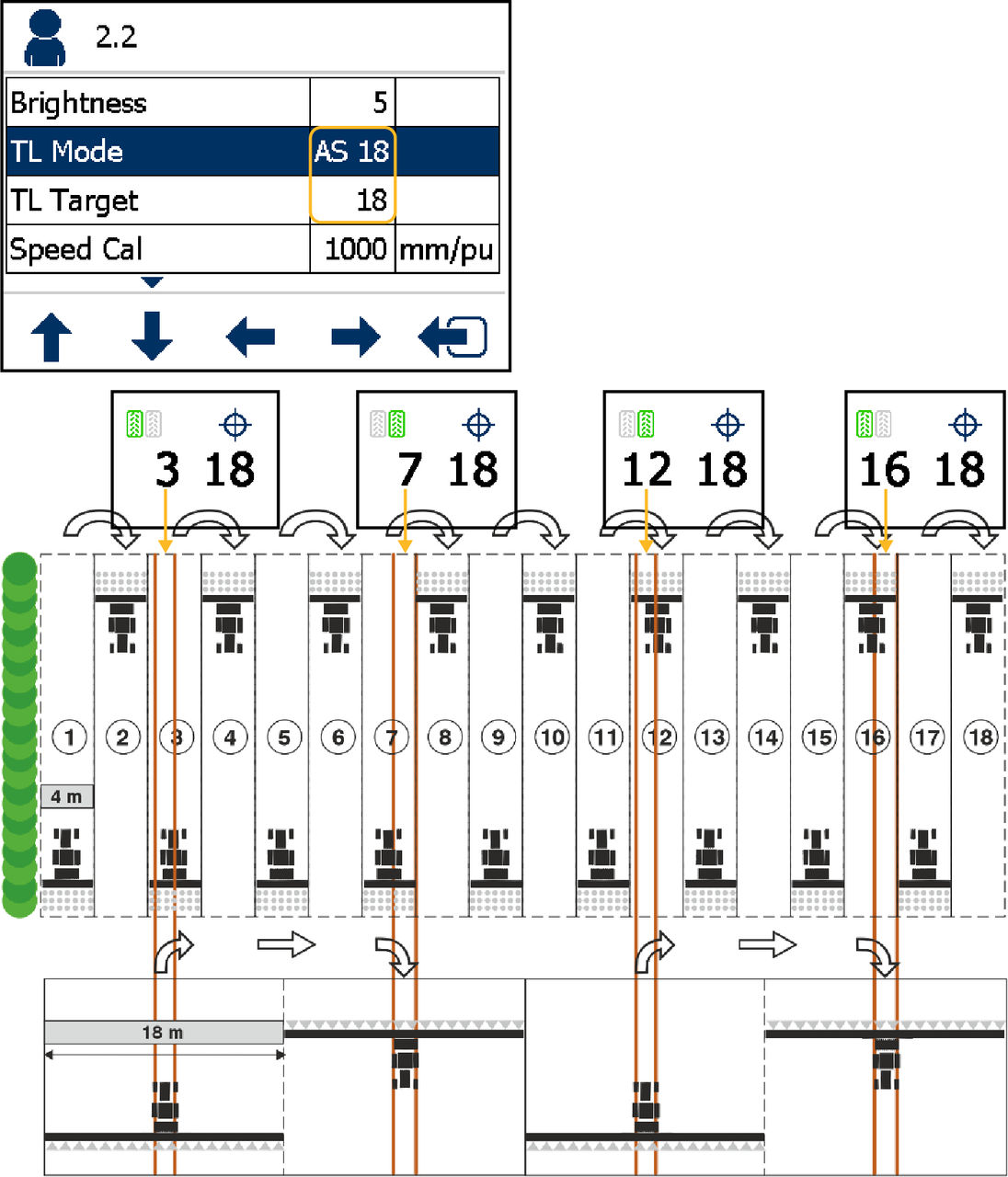

Figure: Eighteen bout tramlining rhythm
