- Identify a location for the radio that has access and protection from damage.
- Use the magnet mounts to attach the radio to the machine.
- Use the magnet mounts to attach the radio antenna on top of the cab roof.
- Route the radio antenna cable down to the MC-X1 installation location.ADDITIONAL INFORMATION:

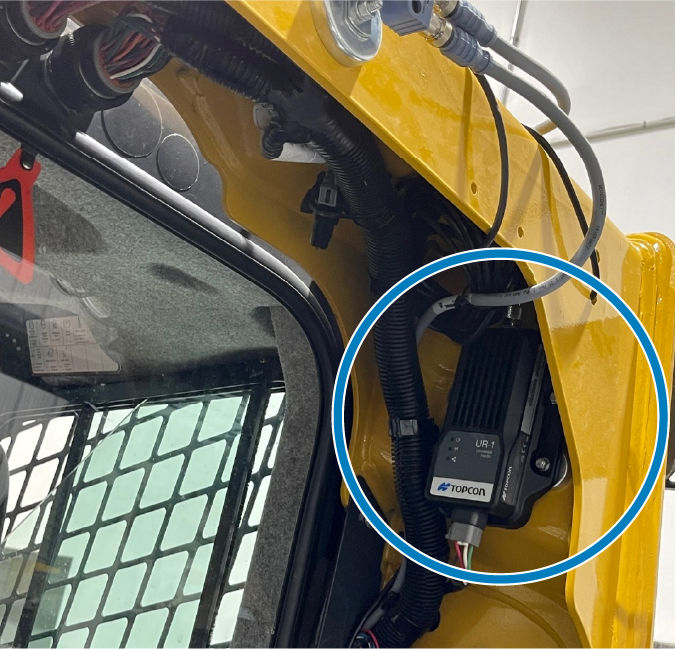

Figure: Radio secured to machine
