MC-Mobile CT8X2 LPS configuration

Note: If LPS-only, terminate the CAN line according to the system diagram. See the LPS System Termination topic.

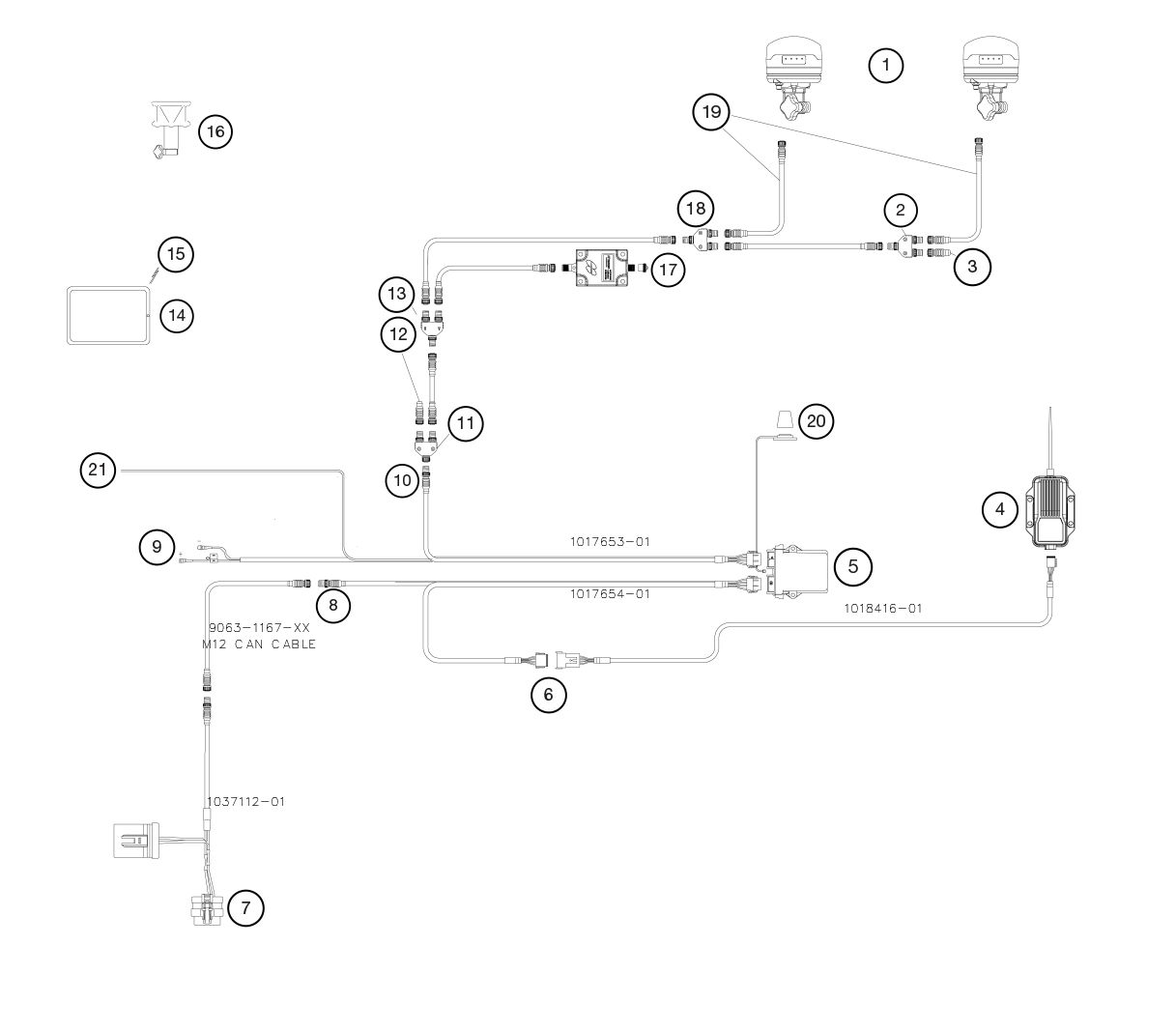

Figure: MC-Mobile with LPS CAT grade control XTR excavator system diagram
  1. GNSS Receivers
  2. Tee
  3. Terminator
  4. Radio
  5. MC-X1
  6. Serial
  7. Machine interface connector
  8. J1939
  9. Unswitched voltage supply
  10. CANOpen
  11. Tee
  12. Terminator
  13. Tee
  14. CT8X2
  15. Wi-Fi
  16. A7R Prism
  17. Body Sensor for LPS configurations
  18. Tee
  19. One-Wire Can Cables; Main Antenna Yellow; Aux Antenna Black
  20. Wi-Fi Antenna
  21. Ignition switched input
Related information
MC-Mobile system configuration
LPS system termination
