MC-Mobile CT8X2 LPS TR configuration

Note: If LPS-only, terminate the CAN line according to the system diagram. See the LPS System Termination topic.

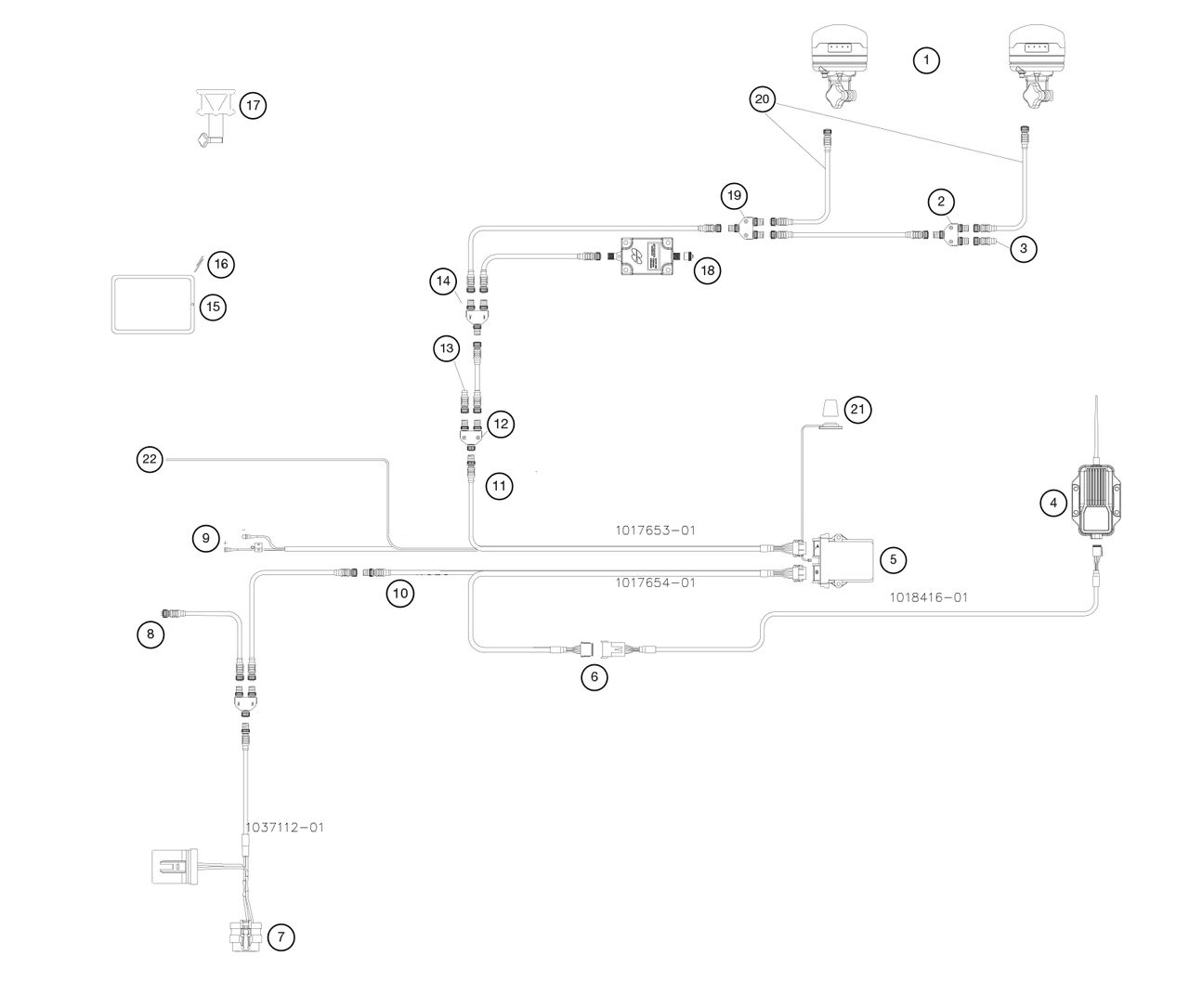

Figure: MC-Mobile with LPS and tilting rotator CAT grade control XTR excavator system diagram
  1. GNSS Receivers
  2. Tee
  3. Terminator
  4. Radio
  5. MC-X1
  6. Serial
  7. Machine interface connector
  8. To Tilt/Rotate control unit
  9. Unswitched voltage supply
  10. J1939
  11. CANOpen
  12. Tee
  13. Terminator
  14. Tee
  15. CT8X2
  16. Wi-Fi
  17. A7R Prism
  18. Body sensor for LPS configurations
  19. Tee
  20. One-Wire Can Cables; Main Antenna Yellow; Aux Antenna Black
  21. Wi-Fi Antenna
  22. Ignition switched input
