Adjust slope

Use the counter-clockwise (CCW) Slope Gain and clockwise (CW) Slope Gain to adjust the hydraulic response for blade slope in either direction.

Select Slope Control .
ADDITIONAL INFORMATION:

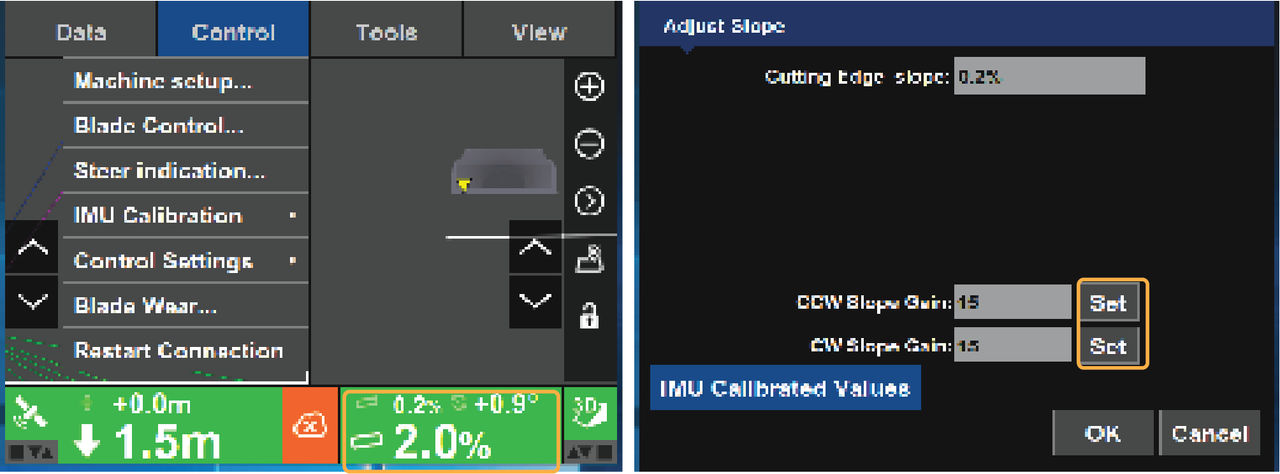

The Adjust Slope screen shows.
Select SetCCW Slope GainCW Slope Gain entry box to activate the corresponding entry box.
Select the up/down arrows to increase or decrease the Gain values.
ADDITIONAL INFORMATION:
You can enter values with the on-screen keyboard.
Select OK to return to the 3D-MC main screen.
