Direction of travel

Select Main menuViewDisplay OptionsDirection of travel

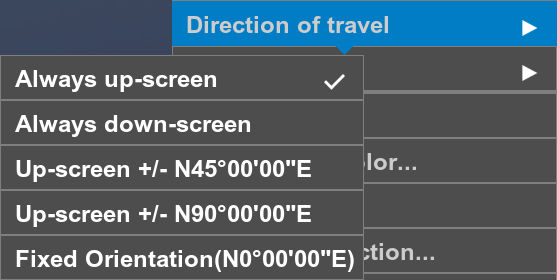

Figure: Direction of travel
This sets how the excavator orientation shows. You can select Fixed Orientation, which is 0,0 degrees, and set the angle of direction or you can select one of the four views.

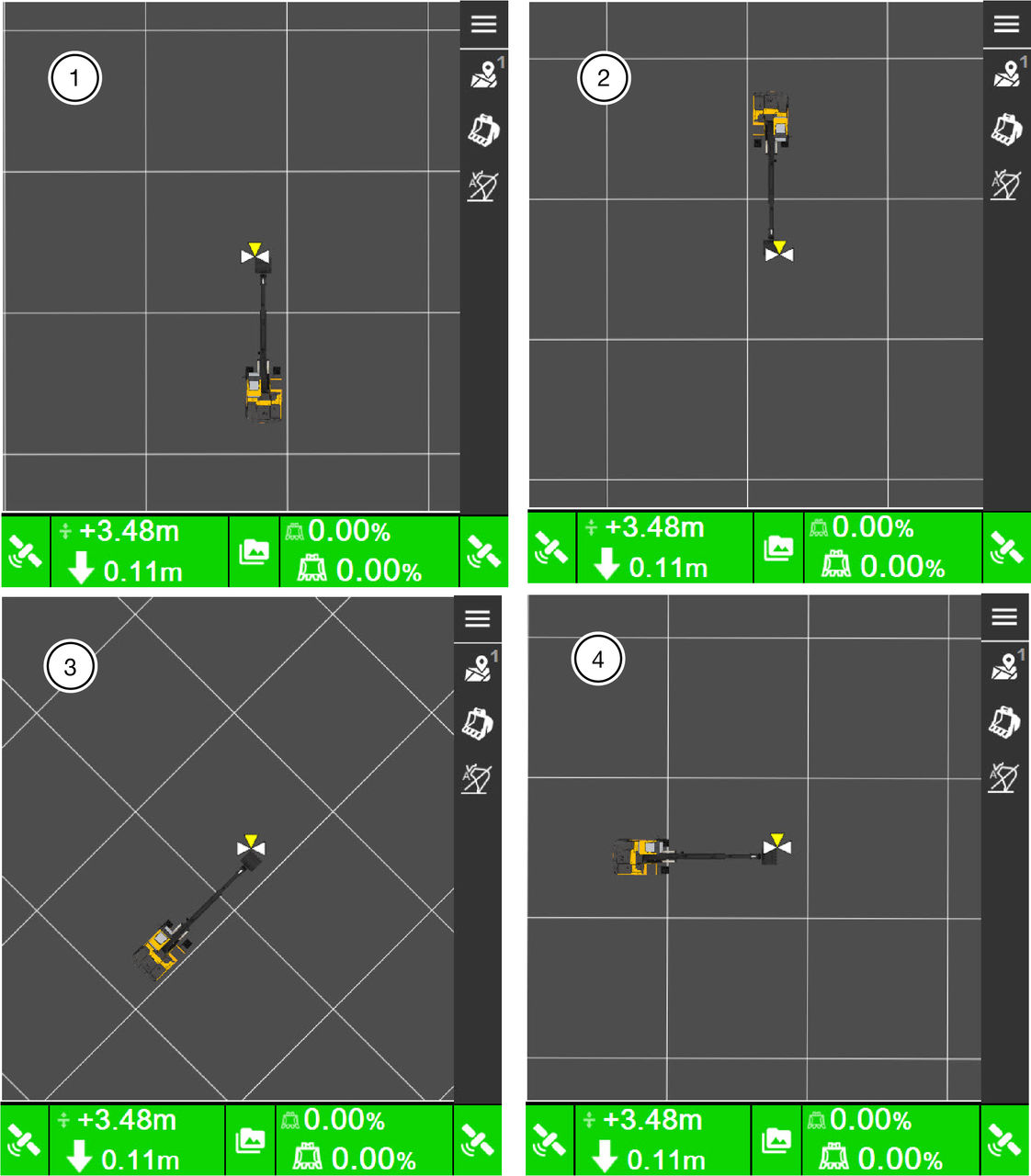

Figure: Direction of travel views
  1. Always up screen
  2. Always down screen
  3. Up screen ± 45 degrees
  4. Up screen ± 90 degrees
